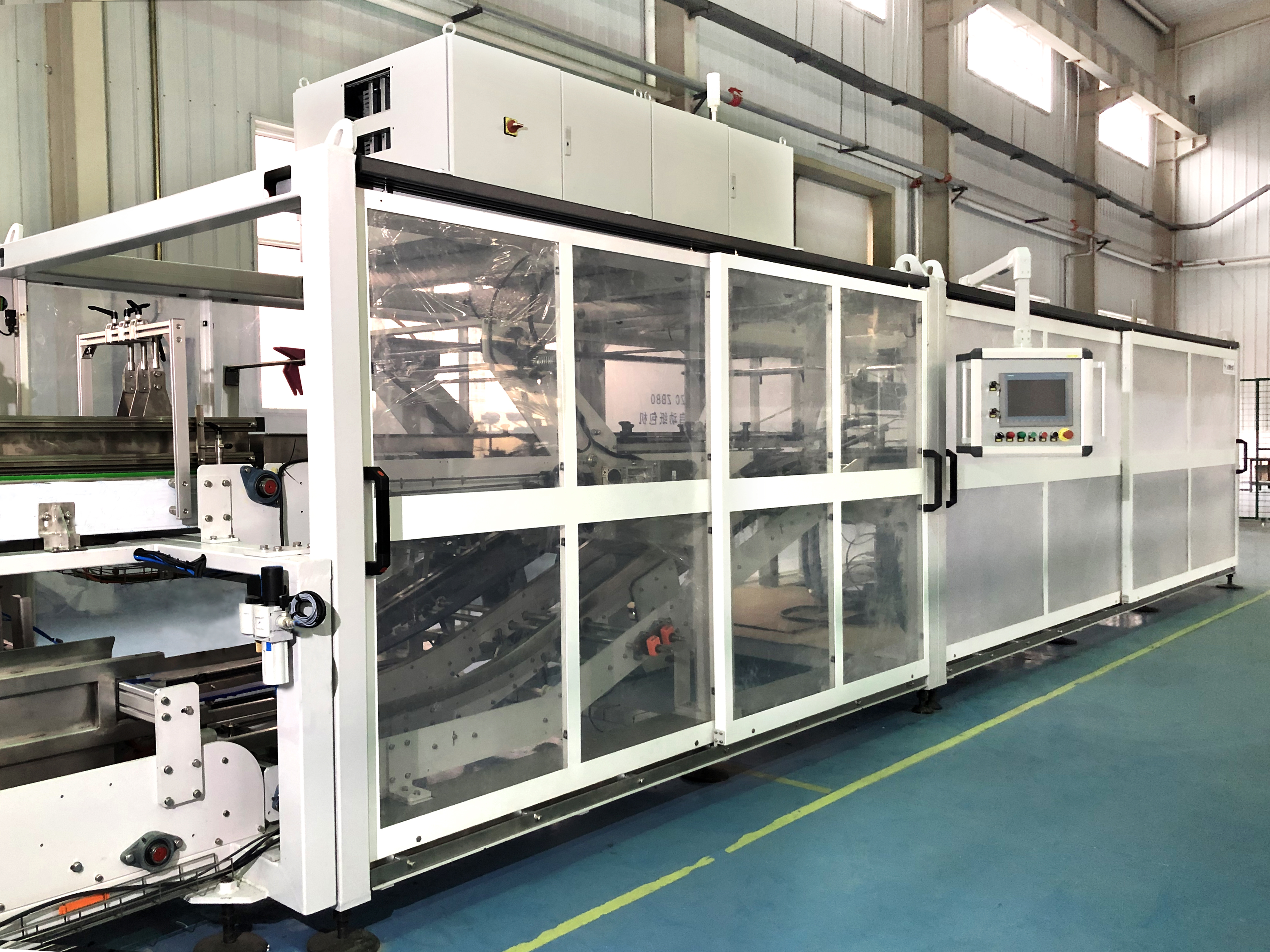

The ZCBJZB80 High-Speed Paper Wrapping Machine has been successfully put into operation.


       ZCBJZB80 Automatic Carton Packing Machine, is a high-end product crafted by Baoji Noberto Technology Co., Ltd., a subsidiary of Hefei Zhongchen Light Machinery Co., Ltd., which is dedicated to perfect packaging of cans, glass bottles, PE bottles, etc. at high speed using one piece of paperboard. Adhering to the company's quality policy of "Self-improvement, innovation, high-end manufacturing, and crafting fine products," based on years of accumulation in the dry packaging equipment field and a sudden breakthrough, it adopts core technologies of industrial automation and the world's leading servo microelectronic control technology, combined with innovative structures using new materials and technologies such as stainless steel, composite aluminum alloy, chromium-plated steel, and powder coating for corrosion resistance. The machine exudes a sense of restraint and elegance while maintaining a high-end and sophisticated appearance.

      This model has a stable production speed of 80 bags per minute and can meet the packaging needs of cans, glass bottles, PET bottles, and various bottle shapes and specifications such as (2*3)*4, 3*4, 3*5, 4*5, and 4*6. The key performance is equivalent to that of imported equipment. The equipment structure adopts a completely new industrial design concept, which is comfortable, elegant, and compact, and the operation is stable and smooth. The control fully reflects humanistic care, with menu-based storage and quick and precise changeover.

◆ Servo control and roller friction level feeding ensure precise and flexible operation without scratches or damage, low waste, and easy organization. The multi-stage conveyor with a large capacity paperboard storage area reduces the frequency of adding paperboard, effectively reducing labor intensity.
◆ The bottle feeding conveyor uses a variable-speed motor and variable-frequency drive to simulate analog control and communicate with the host for self-adaptive speed adjustment; the conveyor belt is made of high-quality engineering composite materials, running smoothly; the bottle flow is controlled by photoelectric induction, with a micro-pressure feed to effectively feed bottles while relieving pressure and preventing jams between bottle groups.
◆ The bottle dividing mechanism is driven by two servo motors, ensuring precise positioning and stable operation. The linear bottle dividing method makes adjustment and calibration easy and flexible. The new 16B high-quality tube roller chain and spring tensioning mechanism ensure precise, smooth, safe and continuous bottle dividing.
◆ The bottle pushing mechanism's clutch interacts with an optical sensor, allowing the pushing rod to quickly disconnect power and issue an alarm in the event of an abnormal load. The handwheel's return is simple and efficient.
◆ The paper box folding uses a servo motor to run along a curved path; the U-shaped forming and ring-shaped wrapping are gentle and natural, resulting in a beautiful and tidy finished product.
◆ An international first-class spray glue system with precise control of the glue line, linear spray glue, seamless setting, low consumption, and strong adhesion;
◆ The user-friendly, soft and comfortable operation interface with a large touch multi-point operation screen fully embodies the humanistic concept of being friendly to users.
